Guangdong Chengqi Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | 3A |
| Supply Ability : | 20 Set/Sets per Month |
| Price : | $6,200.00/sets >=1 sets |
We are in Guangdong Province , China. We are a professional manufacturer of Folding Gluing Machine. Our folder gluers are high quality,
they sold all over the world. We have large machining centers, large
production workshops.
The machine is robust and durable,Advanced design, the assembly is rigorous, Easy to adjust, Simple operation. Folding box glue box works perfectly. It is well received by the majority of users.

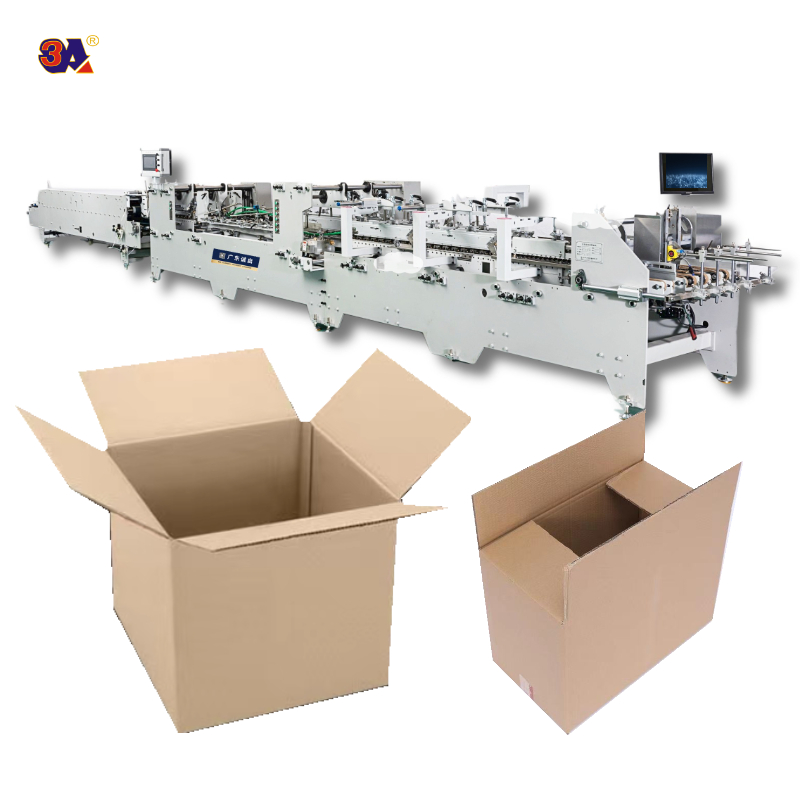

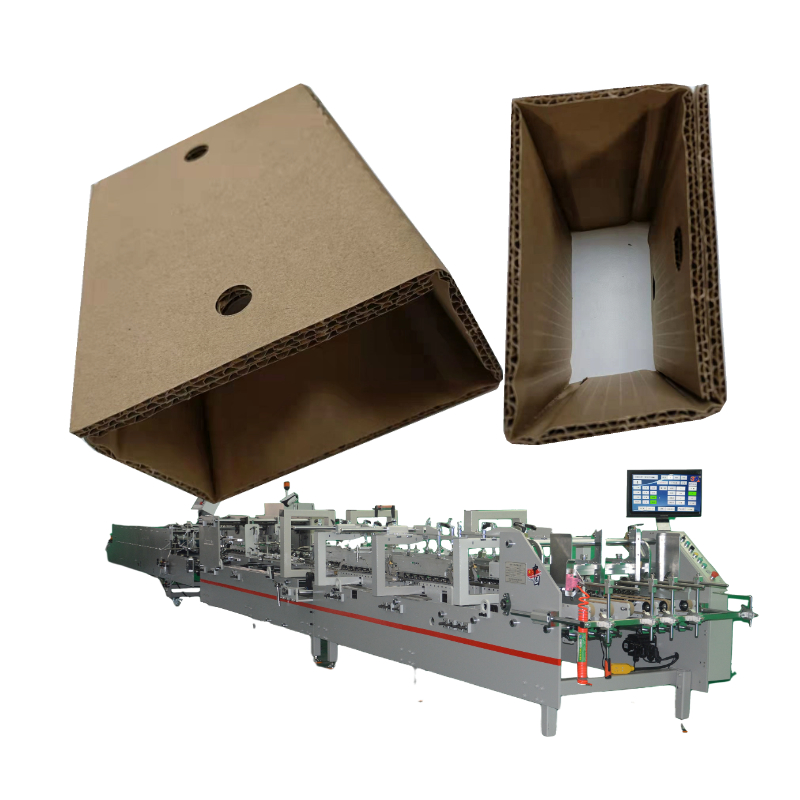

CQT580A/C Automatic folder gluer
Performance characteristics :
1. Automatic box folder gluer machine is used for side gluing of small paperboard box.
2. It's ideal equipment for printing & packaging industry because of its stability, versatility and flexibility.
3. It's available to paste the small box like medicine box, cosmetics box and smaller box like match box .
4. Available to count automatically.
5. The feeding part is controlled by servo motor, which is more advanced and more stable.
6. high automatic, easy and convenient for operation.
7. The machine occupies a small area, is light and convenient.
Product parameters
Model | Box type | Box unfolded size
|
CQT-580A | Straight –line box | A:65mm—400mm B:60—400mm |
CQT-580C | Straight –line box | A:110mm—500mm B: 60—500mm |
MODEL | CQT-580A/C Folder gluer |
Paper | Cardboard 250g-650g |
Max liner speed | 220 Meter / Minute |
Feeding paper | Automatic continuous paper feeding |
Glue | Water soluble cold glue |
Voltage | 380V3P |
Power | 4.5 kw |
Net weight | About 1100kg |
Including packaging weight | About 1300kg |
Overall dimension | Host volume : 2.8m *0.85 m* 1.3m |
Auxiliary volume : 3.0m * 0.8m * 1.3m | |
Package dimensions | Host volume: 3.0m * 1.15m *1.6m |
Auxiliary volume: 2.8m * 1.1m * 1.6m |
Show the details
More Service details
Contact us
Questions : What is the production time after placing an order?
Answer : About 20 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
Questions : What is the production time after placing an order?
Answer : Yes, just give us the destination seaport or container yard..
Questions : What is the production time after placing an order? Answer : About 20 days.
Questions : Do you have machines in stock?
Answe r: Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
Questions: Can you calculate the freight costs of our ports?
Answer : Yes, just give us the destination seaport or container yard..
We have been engaged in printing and packaging machinery for 32 years.We are a professional manufacturer of Folding Gluing Machine,Gluedispenser , Paper cutter computer programming system.. We also jointly sell All kinds of post-press packaging machinery.
Click the image below for more model information
|
|
